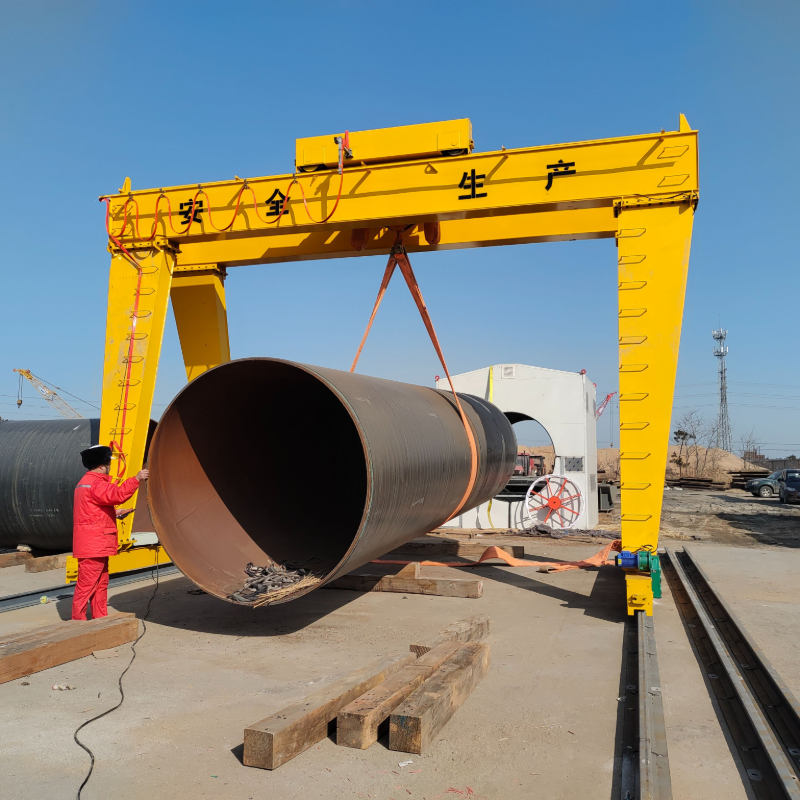

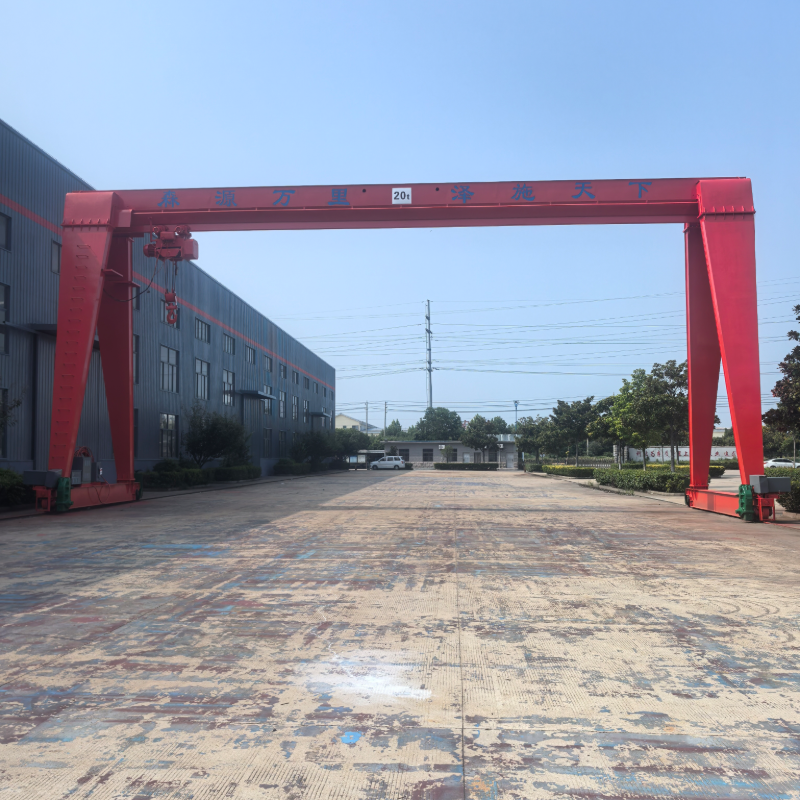

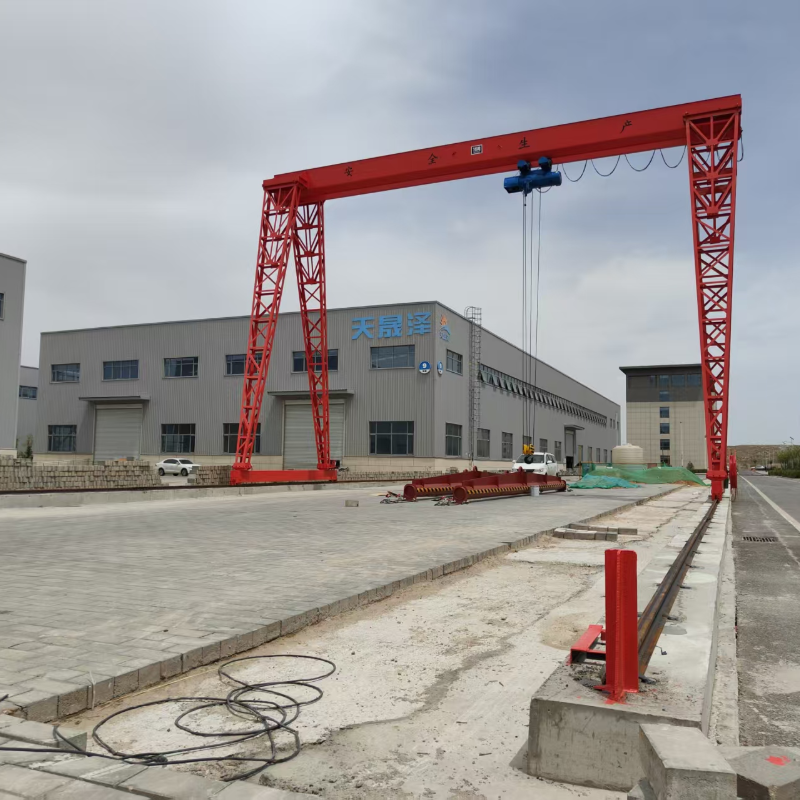

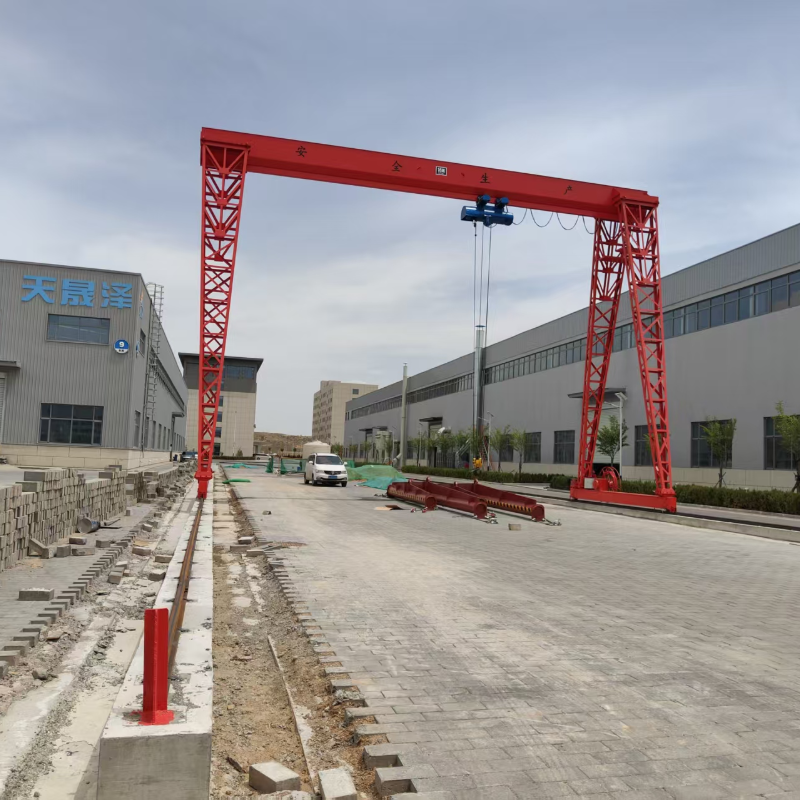

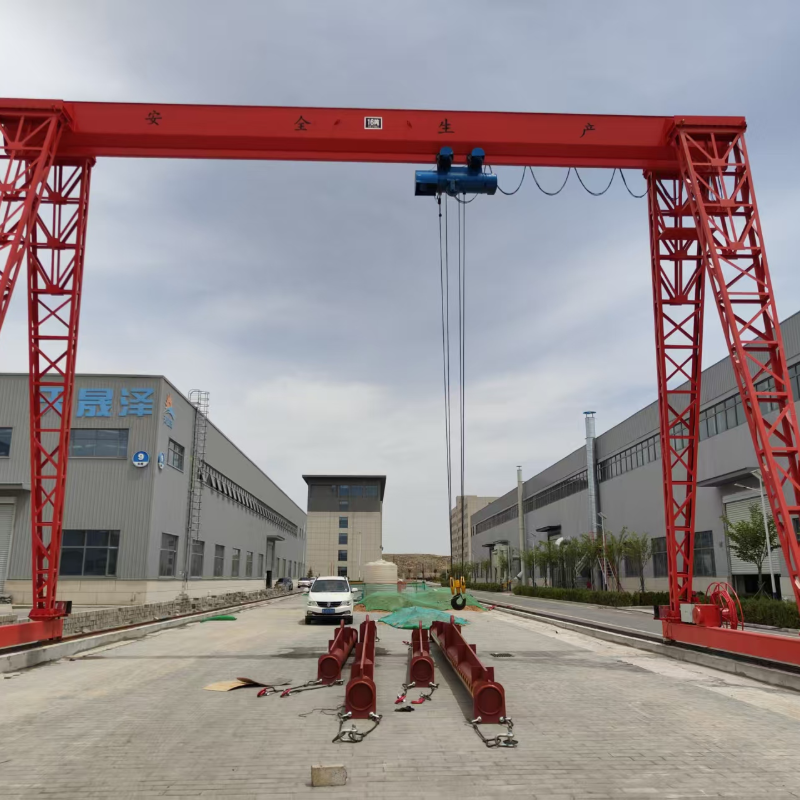

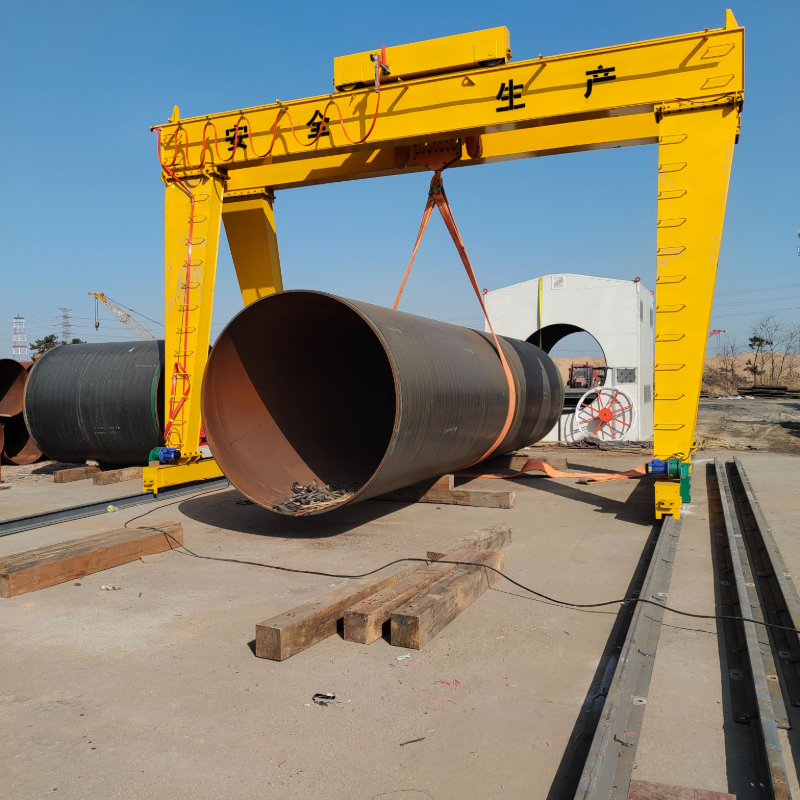

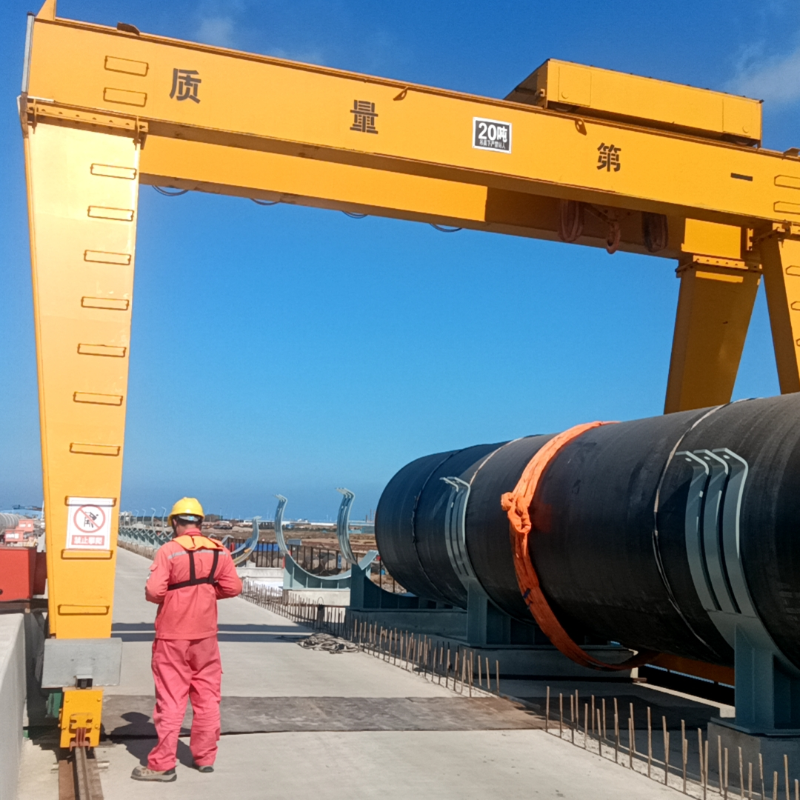

The MH electric hoist gantry crane is designed for use with CD1 and MD1 electric hoists. It is suitable for fixed-span outdoor operations. Flammable and explosive materials must not be hoisted with this crane. It can be configured with a single-ended cantilever or a non-cantilever design upon request. Operation is optional, with or without a cantilever.

Parameters

1. Lifting capacity: 1, 2, 3, 5, 10, 16, or 20 tons (customizable upon request)

2. Span: 7.5m-22.5m (customizable upon request)

3. Lifting height: 6m-30m (customizable upon request)

4. Working class: A3-A5

5. Operating temperature: -25°C to 40°C

6. Power supply: 50Hz, 380Hz

Applications

This crane is suitable for use in factories, railway freight yards, ports, hydropower stations, and other locations.

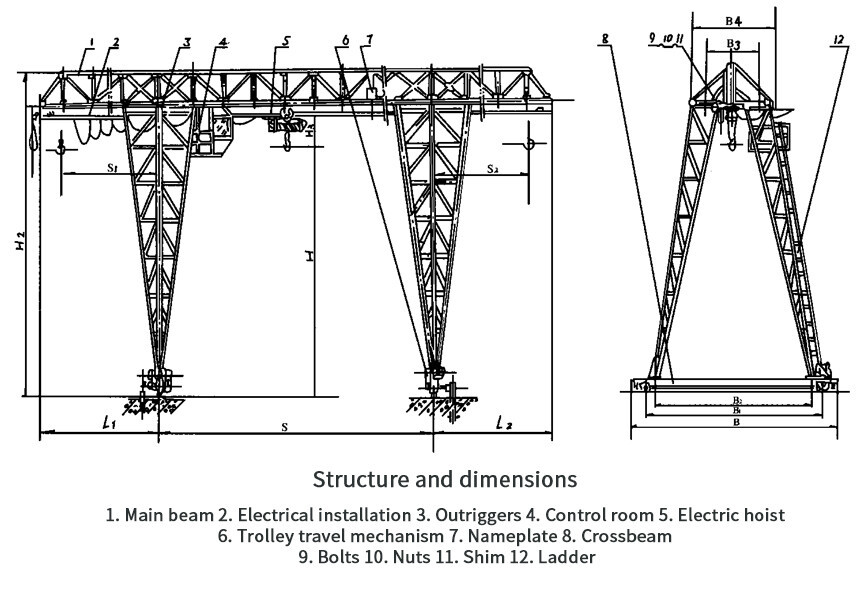

Structural Advantages

Services

1. Pre-sales Service

Understand customer needs and help customers select the right products.

Provide technical support before equipment installation.

Provide in-factory training for equipment operation, repair, and maintenance personnel.

2. After-sales Service

According to contract requirements, track, produce, and ship equipment to ensure it arrives safely and intact at the customer's designated location.

Provide all necessary technical specifications for pre-installation equipment.

3. After-sales Service

Install, commission, and repair equipment according to the contract and customer agreed-upon schedule.

Provide on-site training based on customer needs.

Handle customer complaints regarding product quality and service quality and promptly arrive on-site to resolve any issues.
