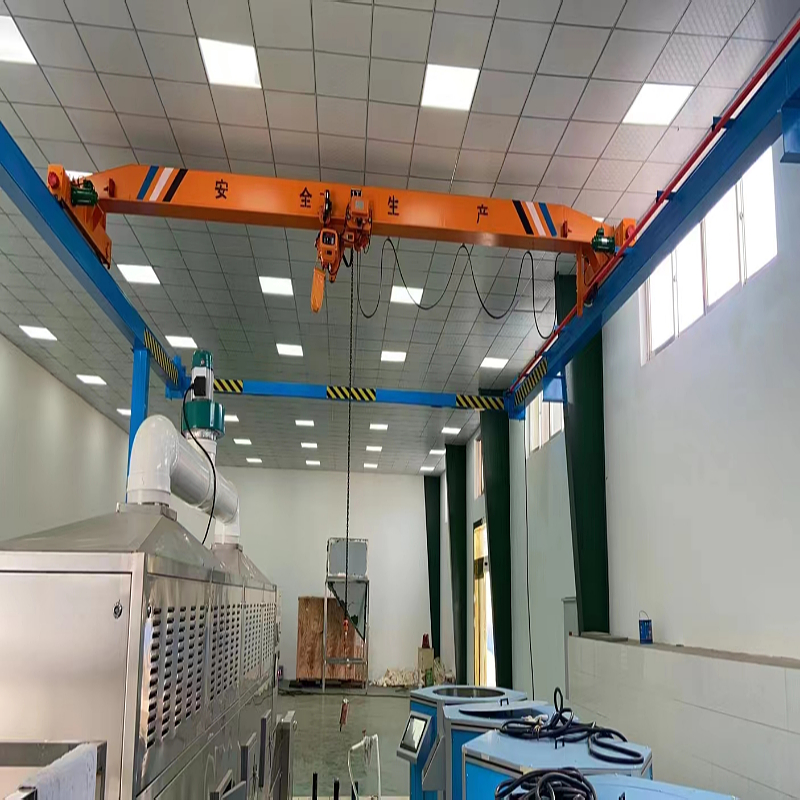

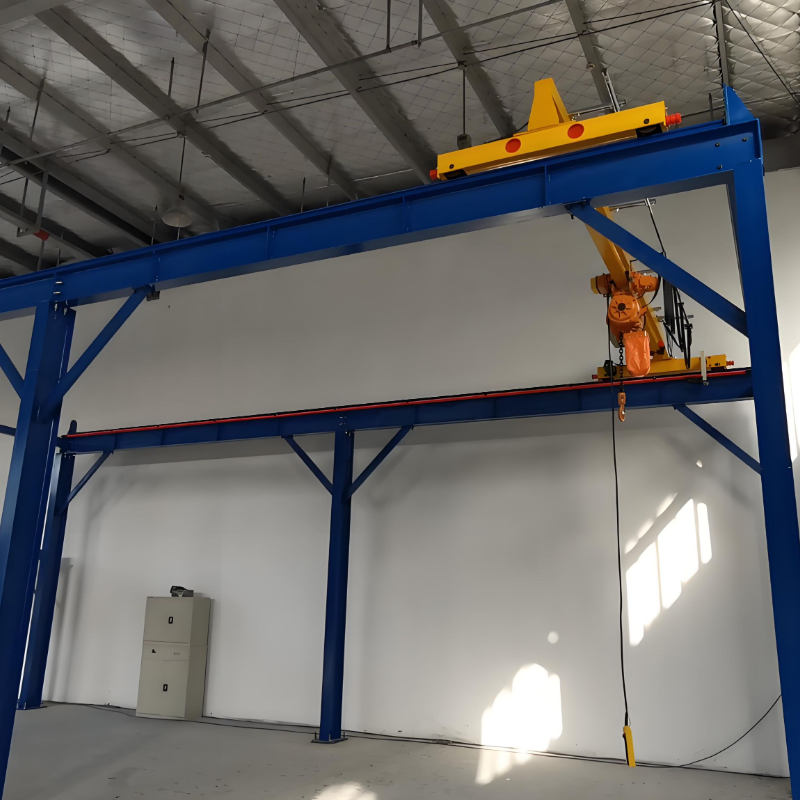

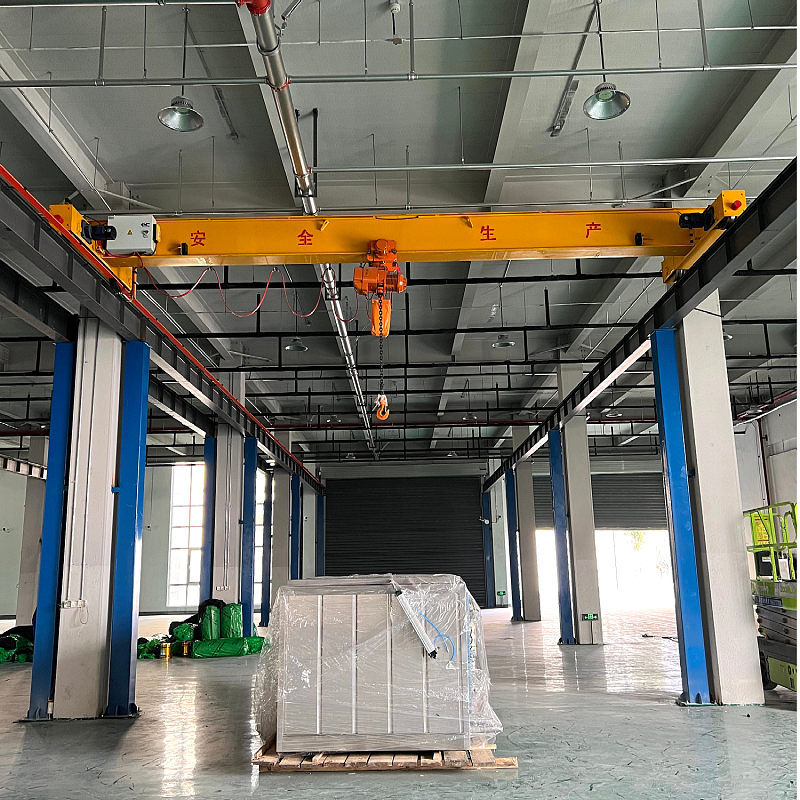

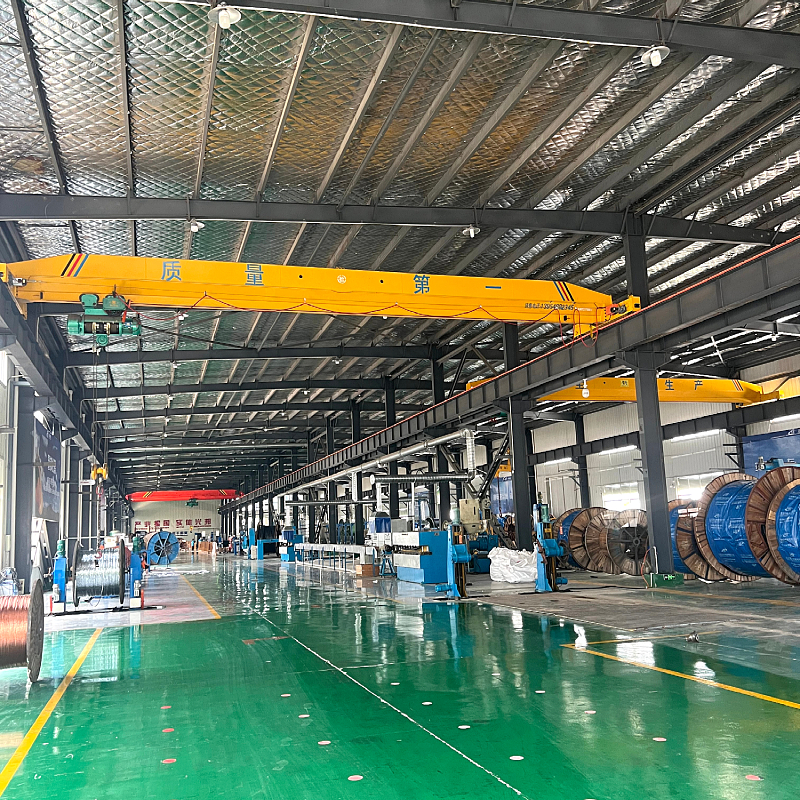

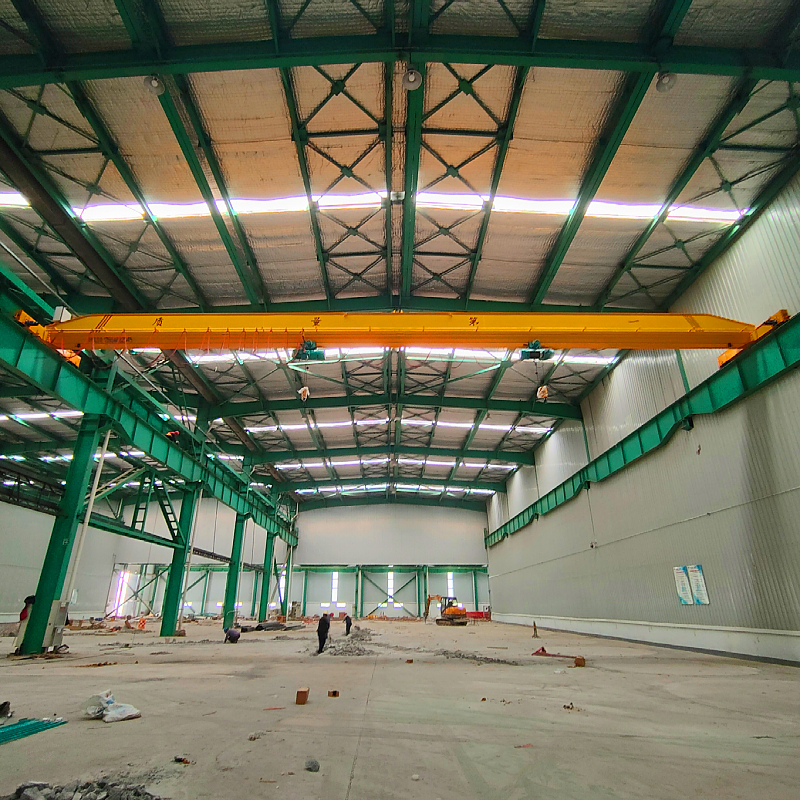

The LD electric single-girder overhead crane is a simple, versatile crane designed for use with CD₁ and MD₁ electric hoists. It offers both ground-based and wireless control, as well as operator cab operation.

Product Introduction

The LD electric single-girder overhead crane is a simple, versatile crane designed for use with CD1 and MD1 electric hoists. It offers both ground-based and wireless control, as well as operator cab operation.

Parameters

1. Lifting Capacity: 1, 2, 3, 5, 10, 16, 20, 25, 32 tons (customizable upon request)

2. Span: 7.5m-34.5m (customizable upon request)

3. Lifting Height: Customizable upon request

4. Working Class: A3-A5

5. Operating Temperature: -25°C-40°C

Applications

Mostly used in machinery manufacturing, assembly workshops, and warehouses. Equipped with a motorized grab as a lifting device, it can handle bulk materials. It is not suitable for use in environments with explosive or fire hazards, high humidity, or areas filled with acidic or alkaline gases. It is also not suitable for transporting molten metals, toxic substances, or flammable or explosive materials.

Structural Advantages

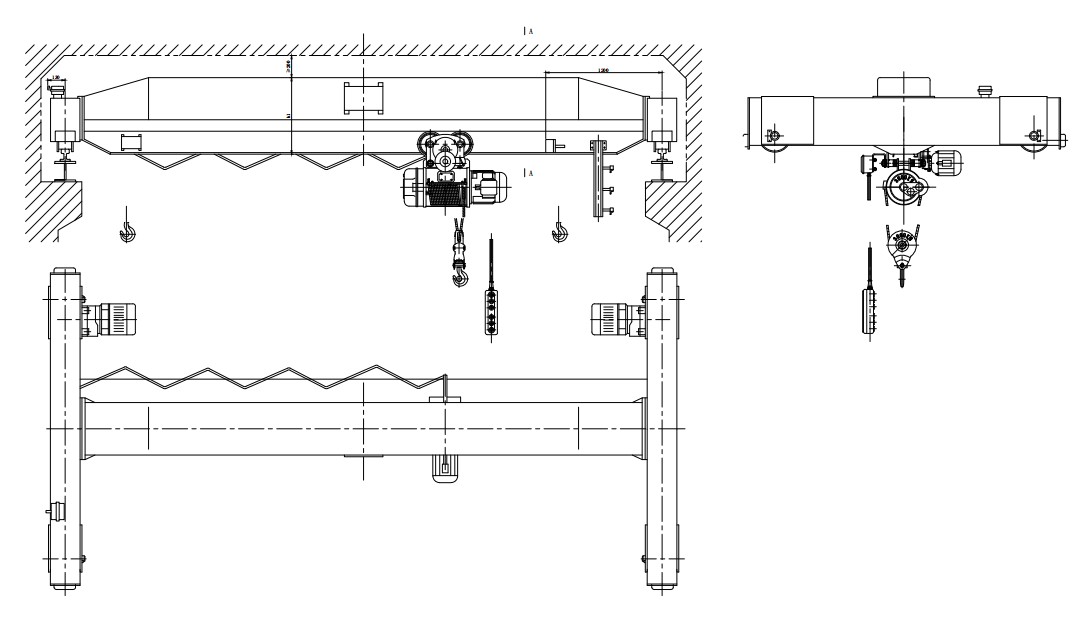

The main beam of this machine is a box-shaped, welded I-beam structure. This structure offers excellent strength, rigidity, and stability while maintaining an aesthetically pleasing appearance and a compact size. The main and end beams are connected using a split structure, facilitating transportation and installation. This product offers two control modes: ground-level and cab-operated. The cab is available in open or closed styles, with side and end entry options, allowing users to choose according to their specific requirements.

Services

1. Pre-sales Service

Understand customer needs and help customers select the right products.

Provide technical support before equipment installation.

Provide in-factory training for equipment operation, repair, and maintenance personnel.

2. Post-sales Service

According to contract requirements, track, produce, and ship equipment to ensure it arrives safely and intact at the customer's designated location.

Provide all necessary technical specifications for pre-installation.

3. After-sales Service

Install, commission, and repair equipment according to the contract and customer agreed-upon schedule.

Provide on-site training based on customer needs.

Handle customer complaints regarding product and service quality and promptly respond to on-site issues.

Establish equipment user profiles and archive and maintain records of installation, commissioning, and maintenance for each device. Ensure traceability of service for each customer and provide technical support for the maintenance of each device.

Periodically conduct customer follow-up visits to collect customer feedback and suggestions on products and services and promptly implement improvements.

All service stations are centrally coordinated by the after-sales service center to ensure timely and effective service.
